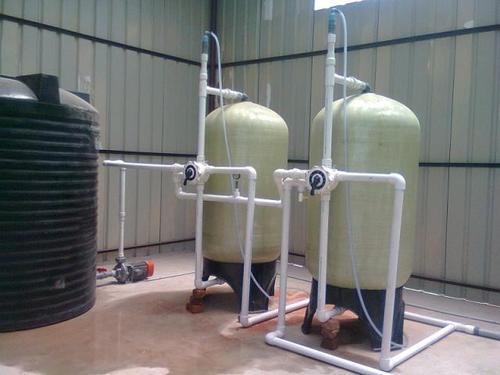

Iron Elimination Filtration Plant
Iron is one of the most abundant metals of the Earth’s crust. It occurs naturally in water in soluble form as the ferrous iron (bivalent iron in dissolved form Fe 2+ or Fe(OH) + ) or complexed form like the ferric iron (trivalent iron: Fe 3+ or precipitated as Fe(OH) 3 ). The occurrence of iron in water can also have an industrial origin; mining, iron and steel industry, metals corrosion, etc.
Cause of Iron:-
Iron contamination causes stains on your sinks and bathroom tiles. Clogging the Pipe lines, reduce the efficiency of Washing machine, Water Heater, Showers etc. When use for bath it causes hair loss and skin rashes
Features:-
Easy to operate
No Running Cost required
Usage:-
Housing Complex
Residential Home
Hospitals
Hotels & Restaurant etc.

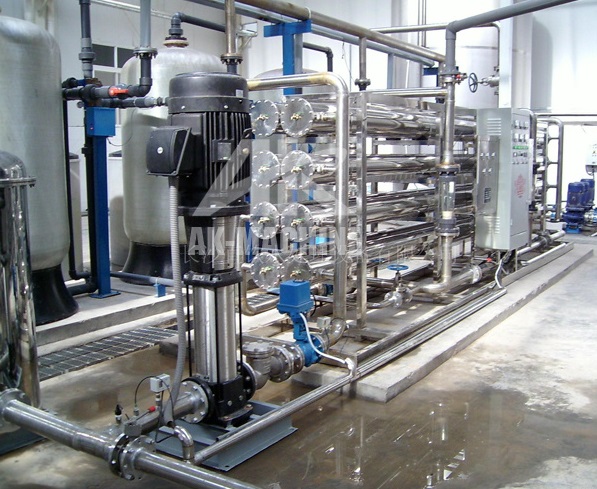

Reverse Osmosis Plant
We offer comprehensive range of RO plant and we design the plant as per customer requirement and we can design recovery upto 70% as per raw water and customer specification
Reverse Osmosis (RO) uses a specialized membrane material that is selective about what it allows to pass through, and what it prevents from passing. The RO membranes pass water very easily because water has a small molecular size, but membranes stop many other contaminants from passing through. Only water and small non-ionized (or non-charged) molecules are allowed to pass through. RO has become very popular for water purification applications due to its ability to remove both suspended and dissolved impurities without the need for regenerant chemicals. Reverse Osmosis systems can be found today in a wide range of facilities: kitchens, hospitals, refineries, power plants, semiconductor manufacturing facilities
PRODUCT MODEL:-
Our Reverse Osmosis plants are comprises of Mild Steel /SS / FRP Pressure Vessel, frontal piping wok with manual / automatic multi port valve butterfly valve / conventional valves for easy operation and control. Available from 250 Liters/hr. to 40,000 Liters / hr.
Effluent Treatment Plant
We offer high quality Effluent Treatment Plants of MBBR and MBR Technology. We offer customers effluent treatment plants that are sophisticated & innovative solution to purify the industrial effluent water. . Our range of effluent treatment systems are used in most of the effluent parameters of factories and are designed to effectively solve the environmental pollution problem created by waste water of a company (without exposing it to the environment).
- Effluent Treatment Plants comprising of
Screen chambers / Grit Chanbers. - Rotary Drum Screens.
- Flash Mixers.
- Floculators.
- Aerobic and Anaerobic.
- Reactors.
- Primary and Secondary.
- Tube Settlers.
- Membrane Bio Reactors.
- Ultra Filteration Systems.
- Tertiary Treatment of Filtration.
- UV Photoelectric Treatment.
- Ozonation Dis-Infection system.
- Reverse Osmosis Units

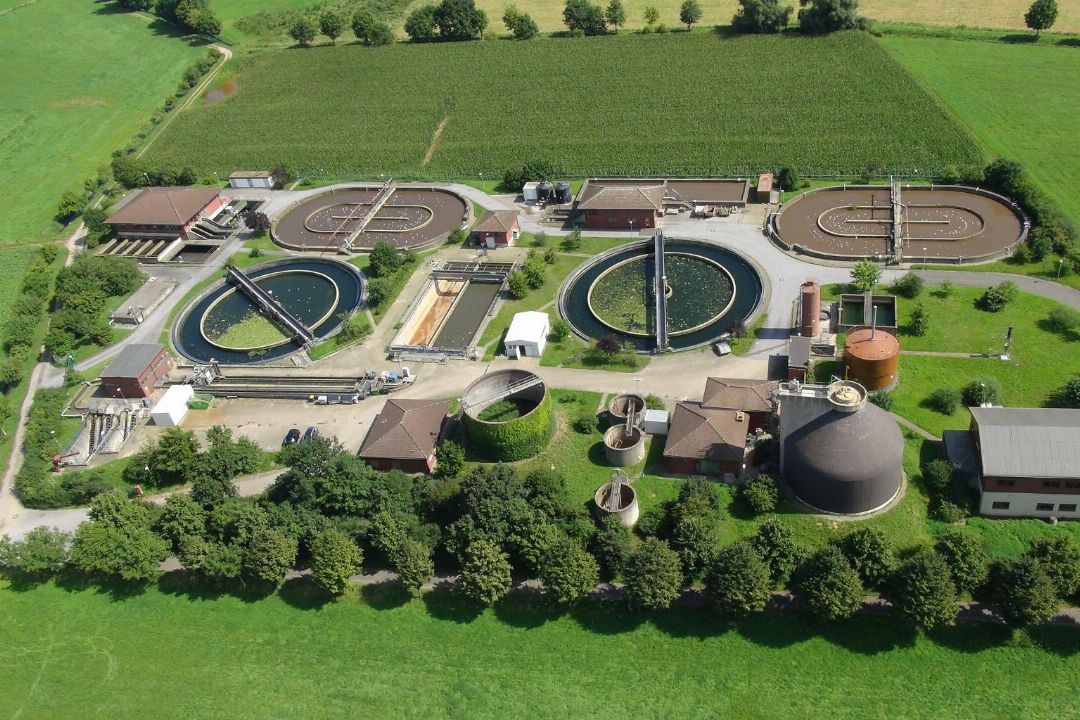

Systems are available from 10 KLD (10 M3/day) up to 2000 M3/day (2 MLD) - Sewage Treatment plant
We offer our Clients Sewage Treatment Plants ( STP ) / Domestic water and Waste Water Treatment Plant that meet their issues regarding wastewater generations in Industrial , Institutional and Commercial Sectors. Our solutions include independent review of alternative technologies , troubleshooting , investigations, , consultant support and Cost effective and efficient STP in Low cost we provide the best Sewage Treatment Plant. Our Company provides the most recent and advanced technologies to our clients using chemical and biological process. Sewage Treatment Plant ( STP ) Technologies such as / Types of sewage treatment plant
- Submerged Aerated / Aerobic Fixed Film (SAFF) Reactor for lower operation and maintenance costs.
- Fluidized Aerated Bio (FAB) Reactor Easy installation.
- Bio-Towers.
- MBBR Moving Bed Bioreactor.
- Membrane Bioreactor MBR
SBR. - Bio-Reactors (Aerobic & Anaerobic) and many more.
Pressure sand filter with acf system
Filtration is the most frequently used, robust method to remove suspended solids from water. The Filter consists of a multiple layer of sand/ Filter Media with a variety in size and specific gravity. The Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop.
The Activated carbon Filters are designed to remove free chlorine, organic matter, odour and Colour present in the raw water and waste water.
Due to its high degree of micro porosity, activated carbons provide a huge surface area. Activated carbon filter operates through adsorption. Adsorption is directly related to the surface area of the media. This great surface area furnishes a huge adsorption area for organic as well as chlorine molecules to attach themselves
PROCESS DESCRIPTION:-
The water passes through the Activated carbon filter, the filter media consist of activated granular carbon. Activated carbon adsorbs onto its surface free chlorine, organic compounds, colour and odour. The activated carbon bed is supported by a multilayer graved bed. The activated carbon bed is also backwashed at fixed intervals to dislodge any accumulated dirt particles.
Clarifier
Circular Mechanical Clarifiers for Wastewater Treatment. Clarification is the oldest and most widely used operation in the effective treatment of wastewater. Mechanical Clarifiers in the activated sludge process serve a dual purpose. they must provide a clarified effluent and a concentrated source of return sludge for maintaining process control, removing sediment, turbidity, and floating material from wastewater.
Adequate area and depth is essential to allow the aeration tank effluent (MLSS) to settle and compact without carryover of solids in the clarified effluent. PCS provides clarifiers up to 28’ in diameter.
Flocculators
Flocculators are custom designed for all your flocculation needs. Energy is transferred into water through the use of paddle wheels which promote particle agglomeration to form large, fast-settling floc particles.
MBBR Media
The MBBR MEDIA consist essentially of:
Less sensitivity to shock loading
Clog free operation
No channels or dead spots.
Provides high Bio – Surface Area
Make Bio-Reactors extremely compact
No backwash needed.
No Sludge return Systems Needed.
Longer Media Life.
Extremely easy to install.Tube Settler Media
Enhancing the settling capacity of water clarifiers, the tube settlers make use of isolated tubular channels.It assures the quick settlement and clarification of sludge to form lump.
Tube Settler Media has following specifications:
CROSS SECTIONAL AREA: 120 mm X 44 mm
SHAPE: HEXAGONAL CHEVRON
HYDRAULIC RADIUS: 1.5 cm
MOC OF MEDIA: PVC
THICKNESS: 1.1 mm (+/- 0.1 mm)
FITTING ARRANGEMENT: TONGUE & GROOVE
MAX CONTINUOUS OPERATING TEMPERATURE: 55 DEGREE CELSIUS
COLOUR: black
WEIGHT: 55.0 kg/m3 (APPROX.)
DAF unit
DAF (Dissolved Air Flotation) technology is effective in reduction of floating matter, oil & grease, color and suspended solids, which in terms reduces BOD & COD. So it is widely used in vegetable oil and food industry for reduction of oil & grease and biological matter, textile or dyeing & bleaching industry for reduction in color, BOD, COD & TSS and also in paint booth for reduction in color & TSS.
The DAF technology introduces air from the atmosphere to the surface of a tank by using air & water mixture under suitable pressure. When the pressure is released in the DAF Unit, millions of micro bubbles adhere to the surface of the suspended matter and help to coalesce the oil or solids and bring it to surface.
The above equipment consists of the following units:
- A collection chamber
- Pressure Tank
- Oil/solids separation chamber
- Straight FRP Plates
- Recirculation Pump
- Air injection system
- An automatic motorized skimmer mechanism.
- Chemical Dosing Modules
MFS unit
MFS media filtration system utilizes variable flow controls, media-filled cartridges, and a storage sump to capture and retain a broad spectrum of pollutants.Media filters are used to remove particulate matter from water. There are several types of media filters, including gravity and pressure filters.It’s filtration is a well-established technology and is a standard system used in water treatment.It permits delivery of high quality filtered water at much higher flow rates, as compared to a conventional sand filter.The filters allow for flexibility in water treatment applications.The system is comprised of one or more structures that house rechargeable, media-filled cartridges which trap particulates and adsorb materials such as dissolved metals, hydrocarbons, and nutrients in polluted runoff.
Applications
- Stormwater Detention
- Water Quality Protection
- Inlet and Outfall Protection
- Industrial Stormwater
- Oil / Spill Control
Water Softening Plant
WATER SOFTENING PROCESS :-
Softening is the ion exchange process, it is done through resin, the most common and probably the easiest method of removing hardness (that is calcium and magnesium) from water and suitable for utility purpose. As the name implies ion exchange is a process in which undesirable ions are exchanged for more desirable ions. The softening process consists of passing raw water containing hardness through a bed of cation resin in sodium form. The hardness ions Ca & Mg are taken up by resin and in exchange, the sodium ions are relinquished from the resin. This is called the service cycle, where the hard water is being softened.
PRODUCT MODEL:-
Our water softener plants are comprises of Mild Steel /SS / FRP Pressure Vessel, regeneration tank, ejector assembly, frontal piping wok with manual / Automatic multi port valve butterfly valve / conventional valves for easy operation and control. Available from 1,000 Liters/hr. to 1,00,0000 Liters / hr.
